Porsche Piwis3 V37.900 is confirmed to be able to working with VXDIAG Porsche hardware and only VXDIAG Porsche Piwis3 V37.900 can work with Porsche 2017 year, piwis2 can’t do.

Performance:

Porsche diagnostics: confirmed

Porsche coding / programming: confirmed

IMMO & Key online: confirmed

Basic info:

Software version: newest V37.900 (the version in the following images is V37.250.020)

Language: Deutsch, English (GB), US English, French, Italian, Spanish, Japanese, Chinese, XX, Russian, Portuguese, Dutch

Update: Piwis II can’t update to Porsche Piwis III V37.250.020, because they have the different hardware, the Piwis III has the higher demand to the computer resolution.

Porsche Piwis3 V37.900 using experience:

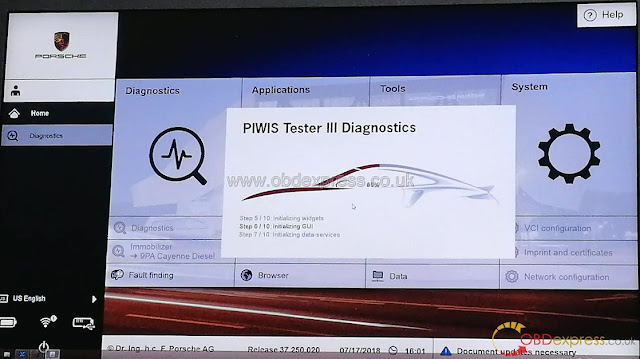

Porsche Piwis3 menu: diagnostics, applications, tools and system.

Content:

– Porsche Piwis3 Diagnostics and coverage

– Porsche Piwis3 engineering

– Porsche Piwis3 Wiring diagram

– Porsche Piwis3 Team viewer

Part 1: Porsche Piwis3 Diagnostics

Porsche Piwis III is compatible with Porsche 911, Boxster, Cayman, Cayenne, Panamera (971 & 970), Macan, 918 Spyder etc.

Porsche Piwis III coverage:

All Porsche from 1998-2018:

Porsche 911(997) (991)

Boxster/Cayman (987)

Cayenne up to MY 2010

Cayenne from MY 2011

Panamera

Especially the latest models:

Paramera (971) 2018

Caynenne (92A) 2018

Macan (95B) 2018

911 (991) 2018

and other old models

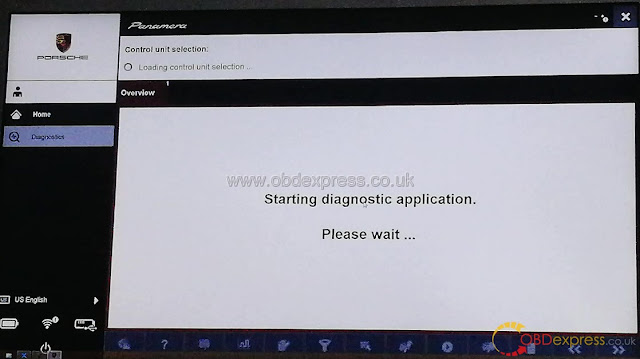

Select Panamera 971 (after 2017).

Remark: compare with Piwis II, Piwis3 puts coding and programming on the same menu.

Choose Control unit.

Choose “Gateway” and go on.

1) Extended identifications

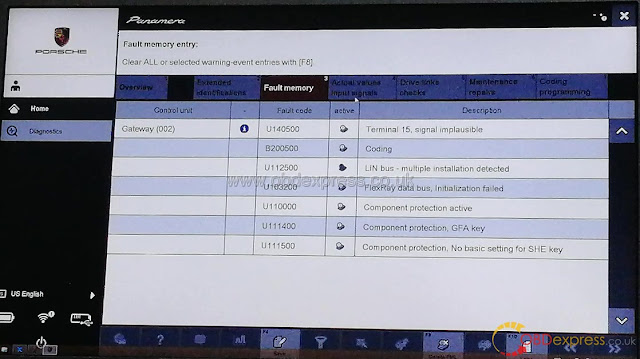

2) Fault memory

3) Data stream

4). Coding and programming.

5). Maintenance repairs

Part 2: Porsche Piwis3 Engineer mode.

Choose”System”, then ” Diagnostics configuration for 991,981, 918, 970, Cayenne from MY11, Macan”

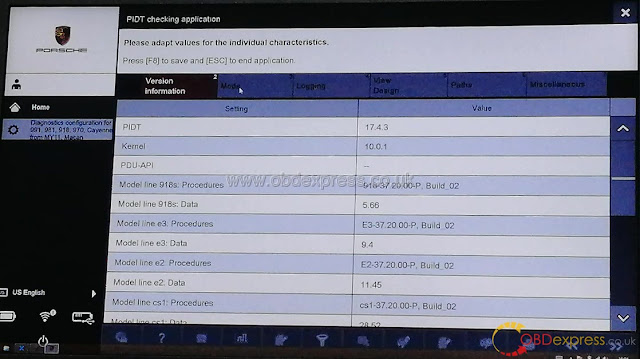

1) Version information

2) Mode option

3) Choose “E” for the engineering version.

After you change the mode to “E” and want to enter to change to other mode you will be disallowed, you need to restart the software. This is another difference between the PIWIS tester III and II. The developer claims to make a normal mode and develop mode for switch as free as you like.

                                                                                                                                                                                                                                                                                                                                                                  Part 3: Porsche Piwis3 Wiring diagram

Choose “Applications” to go “Wiring diagram”.

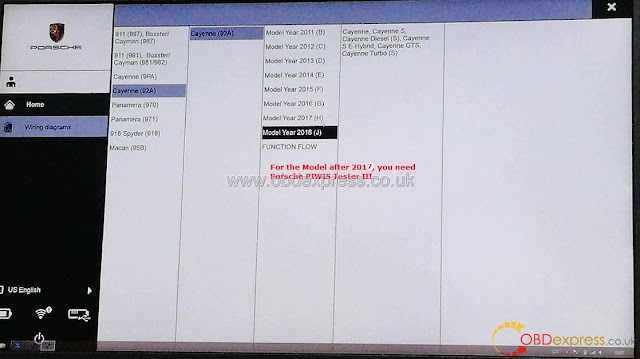

Choose the Porsche model to read the wiring diagram. For the Model after 2017, you need Porsche PIWIS Tester III

It allows the user to drag and enlarge, which is very convenient for the technician.

Part 3: Porsche Piwis3 Team viewer

www.obdexpress.co.uk

f your dealership purchased a new microPOD and you would like to convert your existing microPOD for using with wiTECH 2.0 System, you need to download and install the microPOD Setup Utility to configure/setup your microPOD for wiTECH 2.0.

NOTE: microPODs with a serial number beginning with “WFP” should NOT be used with this utility.

PROCEDURE

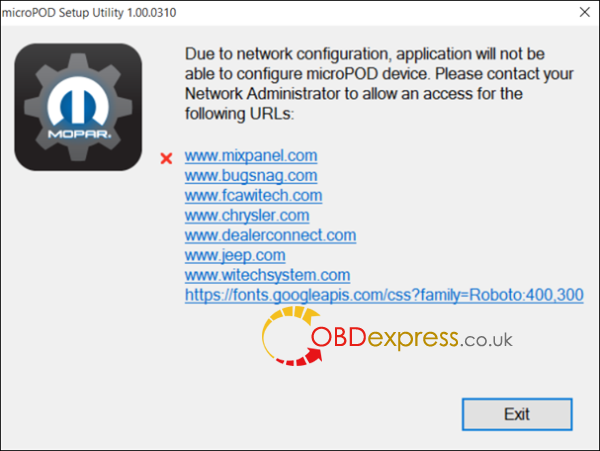

If you have a restricted network, you must first make sure that all sites listed below are enabled to be able to successfully use microPOD Setup Utility and the wiTECH 2.0 System.

mixpanel.com

bugsnag.com

fcawitech.com

chrysler.com

dealerconnect.com

jeep.com

witechsystem.com

http://fonts.googleapis.com/css?family=Roboto:400,300

Note: Please disable any Anti-Virus software that you have on your computer in order to allow the microPOD Setup Utility to install and run properly.

How to download and install the microPOD Setup Utility

IMPORTANT: Once the microPOD is configured using the microPOD Setup Utility, all the microPOD Wireless Settings will be deleted. You will be required to follow the instructions from the KB link titled “How to configure a Wireless Profile on a microPOD II”.

To download the application, please login to DealerCONNECT > Service > wiTECH Information > microPod Setup Utility

Step 1

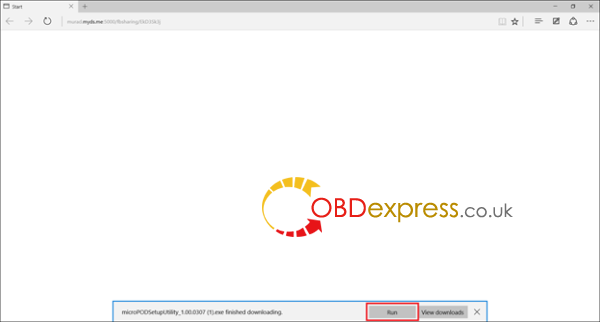

Click on “Run” to begin the downloading process of microPOD Setup Utility.

Step 2

The install wizard will appear to install the wiTECH Driver x64 onto your computer if your PC has not been installed with wiTECH 1.0 application.

If the PC has been installed with wiTECH 1.0 App, you will not see the screen below and proceed to Step 6. Otherwise, click “Next” to proceed.

Step 3

Read the License Agreement carefully, and accept the terms in the license agreement. Then, click “Next” to continue.

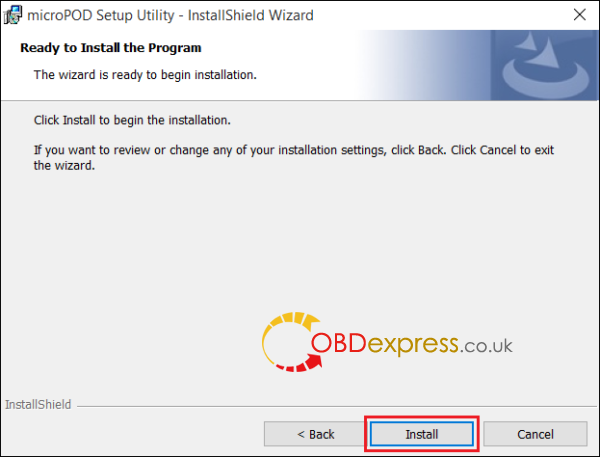

Step 4

You are now ready to start the actual installation of the driver. You now need to click on “Install” for it to start.

Step 5

This will now install the wiTECH Driver x64. Once complete, the program will automatically proceed to the next step.

Step 6

Once the installation has completed, click “Finish”. Proceed to the following section, “Using the microPOD Setup Utility”.

Using the microPOD Setup Utility

NOTE: Please make sure that your computer is connected to the internet and the microPOD is connected to the computer via USB before starting this process. This application will help you configure your microPOD for wiTECH 2.0.

Step 1

Start microPOD Setup Utility by clicking the icon on the desktop:

If the microPOD Setup Utility that is installed is out of date, you will be forced to update to the newer version of the application.

Step 2

Please make sure your microPOD is connected to the PC via USB.

Step 2a

If you see the following screen you may not be connected to the internet, or have a firewall that blocks 1 or more of these websites.

Select “Continue” on the next screen for wiTECH 2.0 Device Setup and Configuration.

NOTE: If you only want to configure the wireless setting on a microPod device to use with wiTECH 2.0, click “Wireless Configuration” and follow instructions.

Select “Continue” on the next screen to begin attempting to connect to the microPOD device.

Step 3

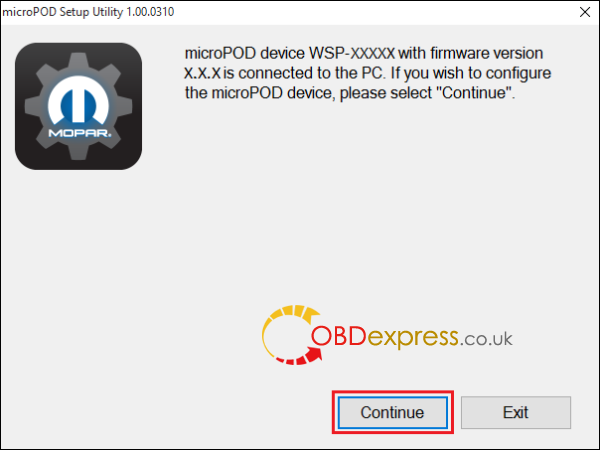

Once your microPOD II is recognized by the utility, select “Continue” to proceed with the configuration.

NOTE: microPODs with a serial number beginning with “WFP” should NOT be used with this utility.

Step 3a

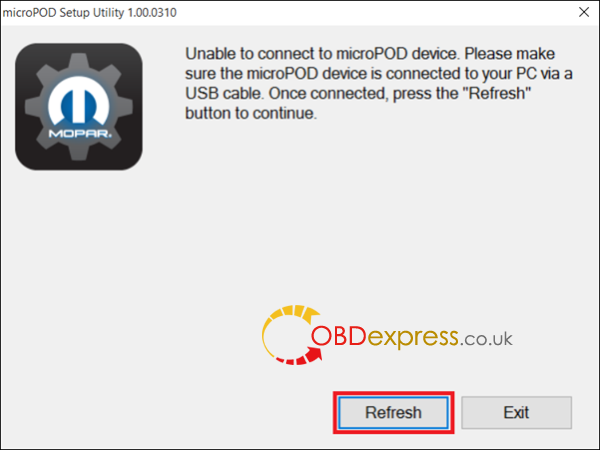

If the utility does not find the microPOD device, please assure that the microPOD is connected via USB and click “Refresh”.

Step 5

The following screen will appear for up to 15 minutes while the microPOD device is being configured.

Step 6

The following screen will appear when the utility completed the configuration of microPOD for wiTECH 2.0 Application.

Note: After microPOD Setup Utility is ran, all existing wireless networks will be removed from the microPOD.

Important! Leave the microPod Setup Utility window running as you will be required to complete software updates to the microPod device before configuring the wireless.

Step 6a

Login into wiTECH 2.0. The microPOD II that was just configured using the microPOD Setup Utility should appear in the wiTECH 2.0 discovery. You will need to update the operating system of your microPOD II before it can be used with wiTECH 2.0. Click “Continue”, and your web browser will redirect you to the page to download and install the operating system update as seen in the following step.

*NOTE: If microPOD II does not show up in discovery after a couple of minutes please power cycle your microPOD II by unplugging it and plugging it back in.

Step 7

Click “Update Now” and your microPOD II should continue to the update screen. Once updating, do not interrupt your microPOD II at any point until the update is complete.

*NOTE: This can take upwards of 9 minutes. It is normal activity for the microPOD II to reboot.

Step 8

Click “OK” and you will be navigated back to the wiTECH 2.0 discovery page. Your microPOD II should appear updated and ready for use.

Step 9

With the microPod Setup Utility still running, configure wireless on the wiTECH microPod 2 device.

Enjoy!

BIG THANKS to the one who shares the wiTECH microPod 2 setup manual!!!

http://blog.obdexpress.co.uk/2019/03/26/witech-micropod-ii-2-setup-instruction/

Good and reasonable- priced programmer (<£500) for VAG: supervag, VVDI2 VAG, Vcds, vagtacho 5, Iscancar, lonsdor K518S, OBDSTAR X300 DP Plus, Autel MaxiIM IM608 etc.

Part 1: First for reviews:

There are plenty for older pre 2008 precoded models , but later vag is going to cost you to get reliability and good coverage . there are some lower cost units like supervag that give a good coverage .

Many of the china products have some coverage like Lonsdor K518S, OBDSTAR X300 DP PLUS etc , and of course Autel MaxiIM IM608 has some interesting coverage.

original Supervag is a good tool in my opinion.. It does what it says and it’s easy to use.

It’s the first tool I use for AKL or spare key 2006-2013 key + remote programming. The problem is Audi.. Poor coverage.

For Audi I use vvdi2 but it’s not a £500 tool. good tool..

My vag tools.. Iscancar, supervag, vvdi2, Vcds, vagtacho 5.

For Audi tt mk1 I use vagtacho 5 clone.

For all Kline I use iscancar + Vcds.

Can and uds -2013 I use supervag (on akl need tango or similar ) except Audi.

For the rest vvdi2.

FYI, the original Xhorse supervag is stopped to produce any more.

Part 2: Next is for operations & Car list:

How to use VVDI2 make key for Audi a6l 2.4 all key lost

Audi A1 and Q3 key programming with VVDI2

VVDI2 makes second key to Passat 2015 MQB with kessy

VVDI2 VAG make new dealer key for VAG 5th IMMO

FYI, the red words means they need to pay for subscription after 180 days trial.

VW/AUDI/SKODA/SEAT V34.19

VW

Read PinCode

17 Dashboard

Jetta

Passat

Bora

Golf

Sharan

Polo

Lavida 3.5

Sagitar 3.5

07-

06

Touran 3.5

Caddy 3.5

VW 2007-

25 Immobiliser

Auto

Manual

01 Engine

Auto

Chip 44(Santana Vista)

Program Keys

2 ~ 3.5 Generation Immobiliser

17 Dashboard

25 Immobiliser

Jetta(2010-)

4       Generation Immobiliser

Automatic Diag Type

Engineer mode(All keys lost by OBD)

CDC+24C32 ICM

NEC+24C32 ICM

Johnson Controls(2013 Bora/Jetta) ICM

Johnson Controls(NEC95320) ICM

Motorola 9S12XHZ512 ICM

NEC+24C64 ICM

Color Meter

Type 1(2013)

Type 2

White Meter

VDO -12

2014.6-

NEC+24C64 ICM(MQB Key)

NEC+95320 ICM

NEC+35XX ICM

MQB NEC+35XX ICM (After June 14)

MQB NEC+35XX ICM (Before June 14)

Magotan/CC

5       Generation Immobiliser

New Touareg

Other Special Function

Chip 48 Read/Write

Generate Special Chip

Unlock Chip 48

Program Remote

09 Central control

B5 Central door lock(KWP1281)

46 Central comfort module(kwp1281)

46 Central comfort module(Canbus)

2015- Jetta

2015- Polo

BCM

BFM

AUDI

Read PinCode

17 Dashboard

Auto

A4 RB8 2006-2007

Manual

25 Immobiliser

Auto

Manual

01 Engine

Auto

Manual

Program Keys

2 ~ 3.5 Generation Immobiliser

17 Dashboard

25 Immobiliser

4       Generation Immobiliser

Engineer mode(All keys lost by OBD)

A1

NEC+24C64

2013

2014.6-

A3/TT/R8(CDC+24C32/3217/3297)

A4 RB4

A4 RB8

Q3

NEC+24C64

2013 Models

2014.6-

Q7/A6L(C6)

9S12DT(G)128

9S12DT256

MQB NEC+35XX ICM (After June 14)

MQB NEC+35XX ICM (Before June 14)

NEC+24C64 ICM(MQB Key)

5       Generation Immobiliser

A4L/A5/Q5

A6/A7/A8

Other Special Function

Chip 48 Read/Write

Generate Special Chip

Unlock Chip 48

Program Remote

35 Central lock(KWP1281)

Type 1

Type 2

46 Central comfort module(KWP1281)

BCM

BFM

SKODA

Read PinCode

17 Dashboard

Auto

Octavia 3.5

25 Immobiliser

Auto

01 Engine

Auto

Program Keys

2 ~ 3.5 Generation Immobiliser

17 Dashboard

25 Immobiliser

4       Generation Immobiliser

Automatic Diag Type

Engineer mode(All keys lost by OBD)

CDC+24C32 ICM

NEC+24C32 ICM

Johnson Controls(NEC95320) ICM

Motorola 9S12XHZ512 ICM

NEC+24C64 ICM

Color Meter

Type 1(2013)

Type 2

White Meter

VDO -12

2014.6-

NEC+24C64 ICM(MQB Key)

NEC+95320 ICM

NEC+35XX ICM

MQB NEC+35XX ICM (After June 14)

MQB NEC+35XX ICM (Before June 14)

Other Special Function

Chip 48 Read/Write

Generate Special Chip

Unlock Chip 48

Program Remote

09 Central control

B5 Central door lock(KWP1281)

46 Central comfort module(kwp1281)

46 Central comfort module(Canbus)

2011-

BCM

BFM

SEAT

Read PinCode

17 Dashboard

Auto

Manual

25 Immobiliser

Auto

Manual

01 Engine

Auto

Manual

Program Keys

2 ~ 3.5 Generation Immobiliser

17 Dashboard

25 Immobiliser

4       Generation Immobiliser

Automatic Diag Type

Engineer mode(All keys lost by OBD)

CDC+24C32 ICM

NEC+24C32 ICM

Johnson Controls(NEC95320) ICM

Motorola 9S12XHZ512 ICM

NEC+24C64 ICM

Color Meter

Type 1(2013)

Type 2

White Meter

VDO -12

2014.6-

NEC+24C64 ICM(MQB Key)

NEC+95320 ICM

NEC+35XX ICM

MQB NEC+35XX ICM (After June 14)

MQB NEC+35XX ICM (Before June 14)

Other Special Function

Chip 48 Read/Write

Generate Special Chip

Unlock Chip 48

Program Remote

09 Central control

B5 Central door lock(KWP1281)

46 Central comfort module(kwp1281)

46 Central comfort module(Canbus)

BCM

BFM

VAG key programming: Autel MaxiIM IM608 is pretty good and fast, an alternative to vvdi2. Although vvdi2 is a proven product, you can have a try Autel MaxiIM IM608 for VAG car models key programming.

Check the vehicle module here:https://pro.auteltech.com/measurecarApp-1-1.html?m=94&operatorType=1

FYI, Autel MaxiIM IM608 is a new tool which replace Auro IM600, look here for its full package:

To be continued for these VAG key programmers’ reviews.

To sum up:

For VAG key programming, all of the above tools are highly recommend, because they all work. Considering budget, VVDI2 VAG is ideal that you can have only VAG car models authorization.

Source:http://blog.obdexpress.co.uk/2019/03/20/vag-key-programmer/
