Thread: I have added an extra key to 2 separate 2005 E classes with VVDI-MB

Both the original key stopped starting the vehicle.

The remote on the original key works, but will not turn in ignition.

New key works fine.

How can I prevent this from happening in the future?

Maf Raoaf i used data acquisition on VVDI-MB it asked me to put original key in eis a few times then into the VVDI MB tool for 10 mins. then uploaded data for password.

Martin Atkinson I had this with a vito van, I just renewed the customers key and wrote a new key file to it, took 5 mins max

Maf Raoaf I think that is because during your online process, the ESL did not open while inserting the original key into EIS. You should wait or insert it many times till ESL is opened, so that the process would complete successfully.

Martin Atkinson Do you mean leave the original key in the ignition to activate it again?

Maf Raoaf No dear, I mean, at each stage of inserting the original key into EIS, you should hear the ESL turned on (Unlocked).

I remember vvdi asked me if ESL is unlocked or not,

if not, you should take it out and then re-insert it into EIS.

Martin Atkinson I don’t remember if it unlocked every time or it asking if the esl was unlocked or not

Frank Keys I was thinking this was the issue also. I had asked previously on here about the esl unlocking and I gathered that it didn't matter if it unlocked at that point, but now I know for sure.

The software specifically asks make sure the esl is synced, yes or no, if you click no a 5 second countdown begins and then it asks same question. So lesson is dont press yes if it hasn't unlocked. I assume you press no and reinsert the key each time until it unlocks, but the software doesn't say to do that.

Martin Atkinson Ahh that was my bad then, I pressed yes and was quite confused as to why the Eis wouldn’t be synched to the car but I know now for future it means is the Eis unlocked

Maf Raoaf Yes m8s, that is the reason.

Yesterday happened with me with W211, and at final stage of reading EIS data, it asked if ESL is UnLocked or Not.

And it was still locked after inserting the original key, so I kept saying No and inserting the key again & again till ESL is Unlocked, then resumed the process by pressing Yes, and everything was Fine with all keys!

Source:http://blog.obdexpress.co.uk/2018/08/30/vvdi-mb-adds-new-keys-esl-unlocked/

2018 newest  FLY FVDI J2534 Diagnostic Tool rolled out!!!What's the main difference between FVDI J2534 for Ford and Ford VCM 2?

FVDI J2534 vs Ford VCM 2:

What is FVDI J2534:

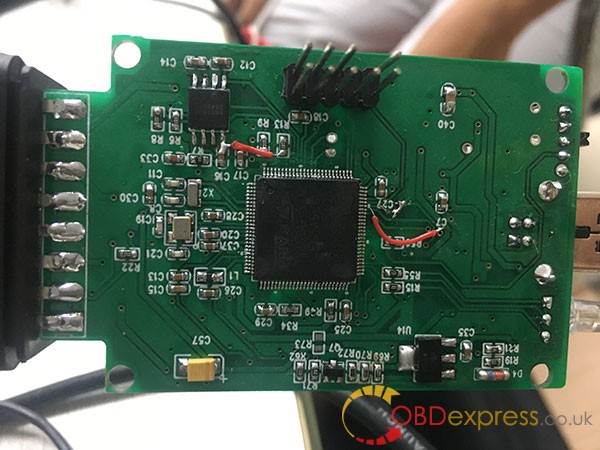

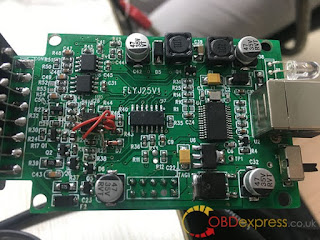

SAE J2534 is a standard for communications between a computer and a vehicle. Government regulations require all automakers provide a J2534 service to everyone in the U.S. for re-flashing emissions related controllers. FVDI J2534 is such a SAE J2534 Pass-Thru device that you can re-flash and, in some cases, diagnose vehicles with factory functionality.

2018 FVDI J2534 is the newest FVDI interface that will work with J2534 software, including BMW/Mini ISTA, Chrysler Witech, Daewoo, Ford/Mazda IDS, GM GDS2, Honda/Acura HDS, Hyundai/Kia, Isuzu, Mercedes Benz Xentry,  Mitsubishi, Nissan/Infiniti Consult 3, Subaru FreeSSM III, Toyota/Lexus/Scion Techstream, Volvo VIDA, VW/Audi IDS

NOW, FVDI J2534 is confirmed to work with Honda HDS, Ford IDS and Toyota Techstream.

BUT, the other is being tested! FVDI J2534 will work with more J2534-based vehicles!

Source:http://www.obdexpress.co.uk/wholesale/fly-fvdi-j2534-mazda-diagnostic.html

What is VCM 2:

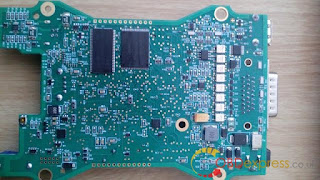

VCM 2 SP177-C1 is the best VCM 2 China clone unit working with Ford IDS software for Ford diagnostic tests, ECU reprogramming and programming.

Source: http://www.obdexpress.co.uk/wholesale/best-ford-vcm-ii-diagnostic-tool-wifi-wireless-version.html

Free download Jaguar and Land Rover SDD 154 software and patch:

Link 1: Jaguar and Land Rover SDD 154 software from the dealer

http://diagnosticdelivery.jlrext.com/idscentral

Link 2: JLR SDD 154 patch from obdexpres.co.uk

a mega link will be updated here

https://mega.nz/#!e90y0CgL!rCGfE1c7tSqxlqhSpKCqU7-VeOQmb_3bbNOm704jX74

Date: 22-08-2018

Version: SDD 154

Password: Not required

Activation: Crack sw - no need activation

Operation System: Windows 7 32bit

Video:  JLR SDD 154 Windows 7 Install

updating..

Test Report:

Confirmed to work with diagnostic tools for Jaguar and Land Rover which works with SDD v139 v141 v142 v145....

Mangoose Pro cable: confirmed!

Vxdiag VCX Nano Jaguar & Land Rover: confirmed!

JLR VCI: confirmed! (install sw and patch, then connect to the car...driver will be installed automatically)

IMPORTANT:

JLR DoIP VCI: works with SDD 06-2016 and Pathfinder diagnostic software 2017

VCM 2 clone: in theory,  SDD V154 should work with VCM 2 clone. Professionals have not tested yet. But VCM2 JLR SDD 154 test result will be updated here.

Test Result: JLR SDD 154 software works like a charm!
